Tim Harwood’s No Load Electric Generator

No load electric generator

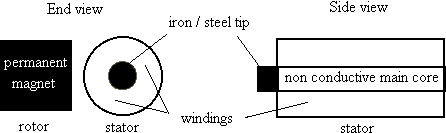

These no load windings are designed for use with permanent magnet motors. The Lenz repulsion field created by the flowing current in the generator windings is approximately balanced by the rotor magnet’s attraction to the core tip. If implimented with skill, net motor load will be minimal.

noload

(c) Tim Harwood 2002 www.geocities.com/theadamsmotor/
