Patent GB231247 by Serafino Orlando

Improvements in and relating to improved means for utilizing electro-magnetic radiation and atmospheric electricity for transmitting and generating power

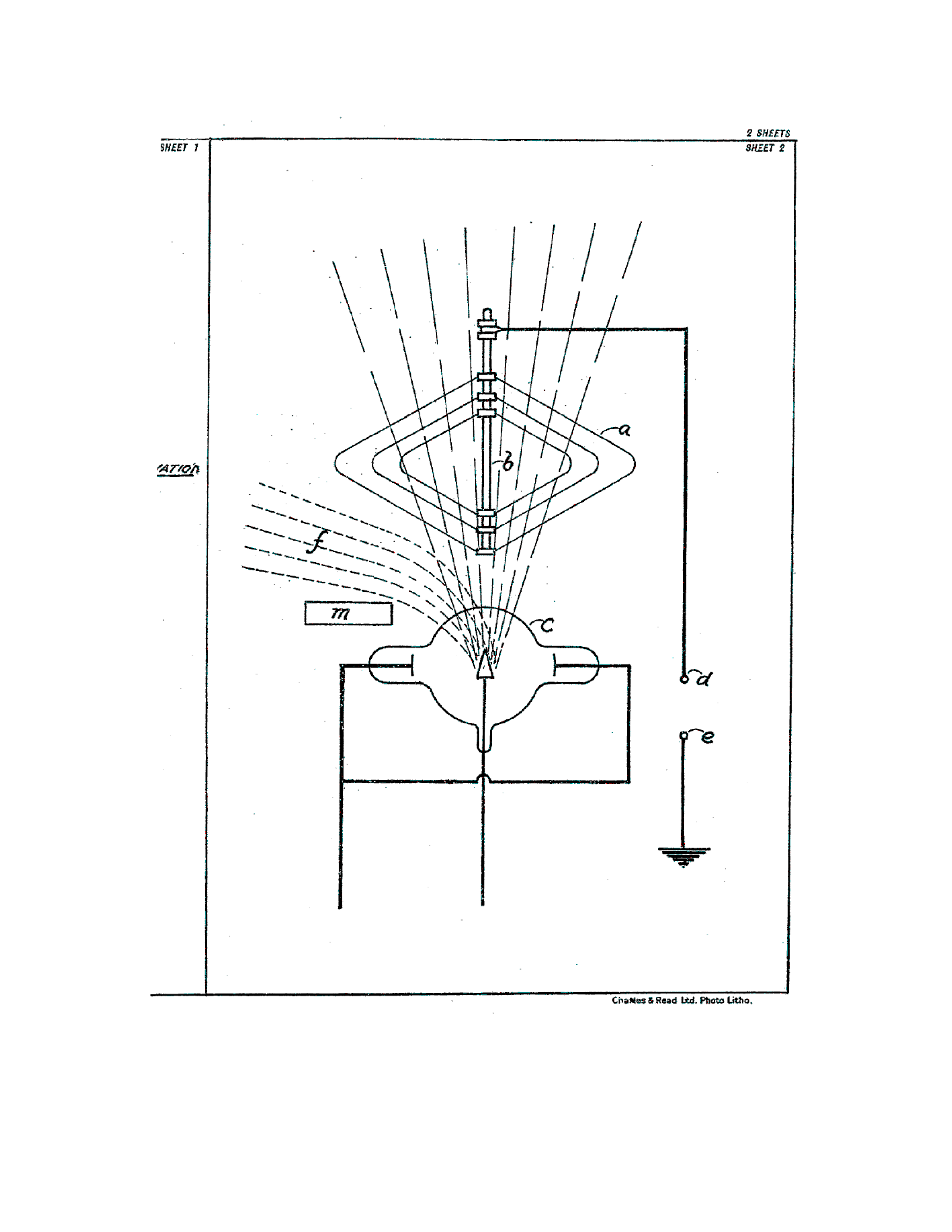

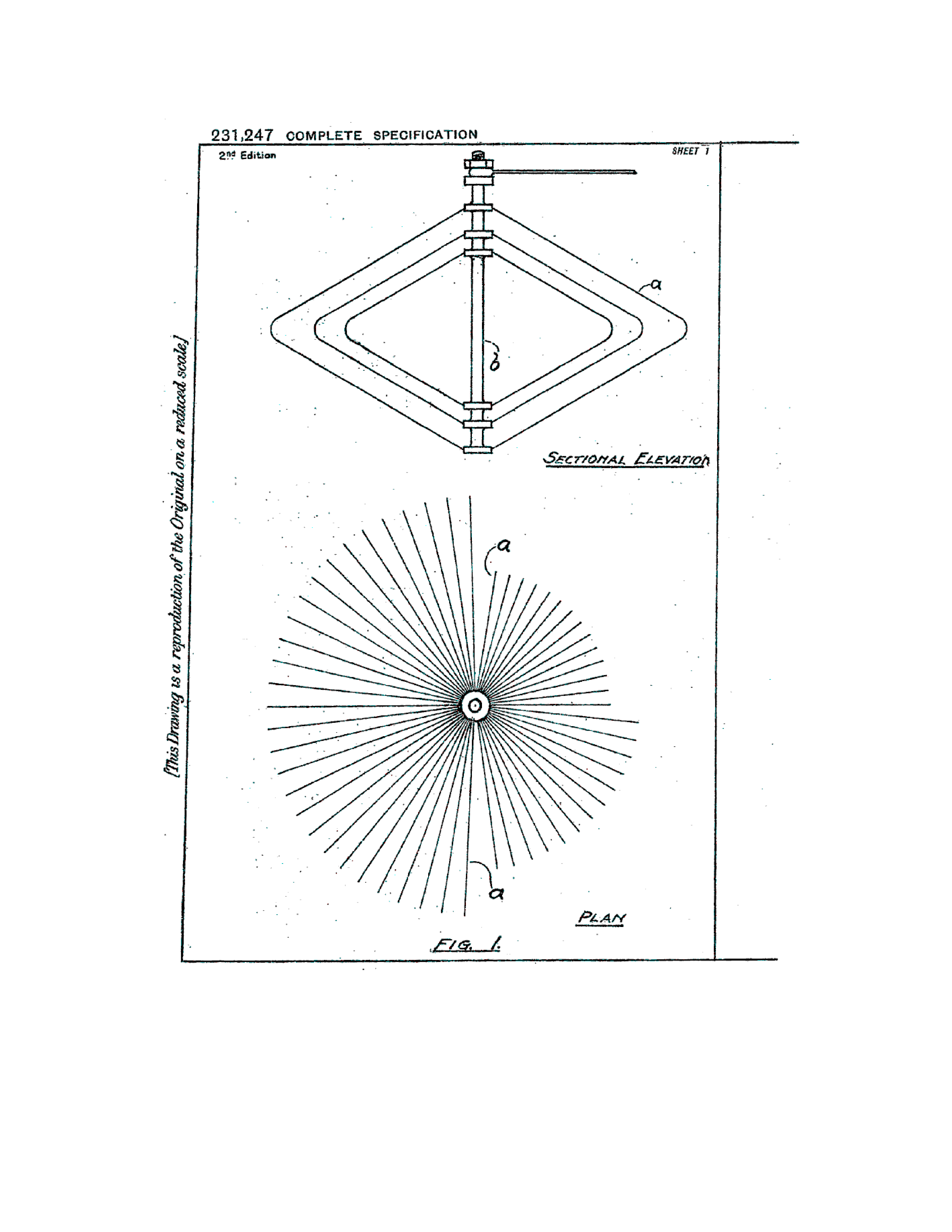

231,247. Orlando, S. Jan. 3, 1924. Aerials and like radiating and receiving conductors.-Energy in the form of electromagnetic waves, or electrostatic charges in the ether, is absorbed bv or radiated from a network of metallic conductors utilized in combination with an impinging stream of Rentgen rays. The aerial network consists of a rhomboid of fine wires a supported by a central conductor b, which is earthed at m. A motor or other receiving apparatus is connected between the points d, e. Rentgen rays from a discharge tube c are stated to form an ionized beam of air which increases the absorption of energy by the network a. A magnet m deflects any electron emission f away from the path of the rays.

Title: Improvements in and relating to improved means for utilizing electro-magnetic radiation and atmospheric electricity for transmitting and generating power
Application Number: GB19240000163 19240103
Publication Number: 231247 (A)
Application Date: 1924-01-03
Publication Date: 1925-04-02
Assignee: Serafino Orlando
IPC: H05F 07/00

Drawings

Download patent GB231247 in PDF
